| Model Parameters | TD10 | TD20 | TD30 | TD50 | TD100 | TD200 | TD300 | TD500-TD1000 | |
| Daily output (T/24h) | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50-100 | |
| Compressor Power(HP) | 4 | 9 | 14 | 28 | 50 | 2*50 | 3*50 | Ammonia System Custom-made | |
| Fan Power for Cooling Tower | 0.18kw | 0.37kw | 0.55kw | 0.75kw | 1.5kw | 1.5kw | 2.2kw | ||
| Cooling Pump Power | 0.75kw | 1.1kw | 1.5kw | 2.2kw | 4kw | 5.5kw | 7.5kw | ||
| Unit size | L (mm) | 1520 | 1550 | 1680 | 1790 | 2320 | 2800 | 3500 | |
| W (mm) | 1000 | 910 | 950 | 1080 | 1820 | 2130 | 2300 | ||
| H (mm) | 2020 | 2010 | 2200 | 2270 | 1830 | 2100 | 2400 | ||
| Unit N.W.(kg) | 900 | 1400 | 1750 | 2070 | 3200 | / | / | ||
♦ Compressor Brand:Bitzer / Refcomp ♦ Cooling Method:Water Cooling/Air Cooling ♦ Power Supply:Voltage 380V/50Hz(60Hz)/3P; 220V(230V)/50Hz/1P; 220V/60Hz/3P(1P); 415V/50Hz/3P; 440V/60Hz/3P. 380V/50Hz(60Hz)/3P；220V(230V)/50Hz/1P；220V/60Hz/3P(1P)；415V/50Hz/3P；440V/60Hz/3P.♦ Main application: Drinking, beverage cooling, vegetable fresh-keeping, fishery preservation, chemical processing, etc. | |||||||||
A Tube Ice Machine is one of the most widely used industrial ice-making solutions for businesses that need hygienic, crystal-clear, slow-melting ice in large quantities. Known for efficiency, durability, and versatile applications, tube ice machines are used across food processing, fisheries, beverages, concrete cooling, and industrial refrigeration.
Whether you are looking for a tube ice machine for commercial ice production or industrial cooling operations, understanding how these systems work and what features matter most can help you make the right investment.
In this guide, we explore everything you need to know about tube ice machines, including working principles, benefits, applications, and buying considerations.
What Is a Tube Ice Machine?
A Tube Ice Machine is an industrial refrigeration system designed to produce cylindrical hollow ice, commonly called tube ice. This ice is transparent, hard, and melts slowly, making it ideal for both cooling and commercial use.
Tube ice is typically:
Crystal clear
Cylindrical in shape
Hollow at the center
Hard and dense
Uniform in size
Compared with other ice forms, tube ice offers excellent storage performance and long-lasting cooling.
How Does a Tube Ice Machine Work?
A tube ice machine uses an evaporator system where water freezes around vertical tubes.
Ice Making Process
1. Water Circulation
Filtered water enters the evaporator and circulates continuously.
2. Freezing Process
Refrigerant absorbs heat, freezing water layer by layer inside the tube walls.
3. Ice Harvesting
Once the desired thickness is reached, hot gas or defrost technology releases the formed tube ice.
4. Cutting and Discharge
Ice is cut into uniform lengths and discharged automatically.
The process is continuous, automated, and highly efficient.
Key Features of Tube Ice Machines
High Ice Purity
Tube ice machines often use food-grade materials and water filtration systems for hygienic ice production.
Slow Melting Ice
Dense structure allows longer cooling duration.
Fully Automatic Operation
Modern systems support:
Automatic water supply
Ice making control
Ice harvest automation
Fault alarms
Remote monitoring
Energy Efficiency
Advanced tube ice machines are designed to reduce:
Power consumption
Water waste
Operating costs
High Production Capacity
Available capacities may include:
1 ton/day
5 ton/day
10 ton/day
20 ton/day
50 ton/day
100 tons/day and more
Applications of Tube Ice Machines
1. Food Processing Industry
Tube ice is widely used in:
Meat processing
Poultry plants
Vegetable cooling
Seafood preservation
It helps maintain freshness and control temperatures during processing.
2. Fishing and Seafood Industry
Tube ice is ideal for:
Fish storage
Onshore seafood markets
Cold chain transportation
Processing plants
Its slow melting characteristic makes it excellent for long-duration cooling.
3. Beverage Industry
Tube ice is popular in:
Beverage cooling
Packaged ice production
Drink manufacturing
Retail ice supply businesses
Its clean appearance also increases market value.
4. Concrete Cooling
In hot climate construction, tube ice helps reduce concrete temperature during batching.
Benefits include:
Crack prevention
Better concrete strength
Improved curing conditions
5. Chemical and Industrial Cooling
Tube ice machines support:
Process cooling
Thermal storage
Temperature control systems
Advantages of Tube Ice Machines
High-Quality Ice Production
Produces clean, uniform, premium ice.
Long Ice Storage Time
Slow melting reduces losses.
Low Operating Costs
Efficient refrigeration systems lower utility expenses.
Reliable Continuous Production
Suitable for 24/7 industrial operations.
Wide Industry Applications
One machine can serve multiple cooling needs.
Conclusion
A Tube Ice Machine is an ideal solution for businesses seeking efficient, hygienic, and reliable industrial ice production. Whether used in food processing, fisheries, beverages, concrete cooling, or industrial refrigeration, tube ice machines provide durable performance and excellent ice quality.
By understanding capacity requirements, applications, energy efficiency, and supplier capabilities, businesses can select the right tube ice machine for long-term success.
If you are searching for a dependable Tube Ice Machine manufacturer or customized industrial ice plant solution, choosing an experienced supplier can help maximize performance and return on investment.
· Daxtro Smart Control: Command Your Ice Plant, Anytime, Anywhere.
Monitor real-time performance, adjust settings, and receive proactive alerts directly on your phone or computer. Transform raw operational data into actionable insights for optimized efficiency and predictive maintenance.
·Sanitation &Safety: DAXTRO tube ice machine adopt stainless steel 304 material for the mainframe structure.
·Optional tube ice sizes: 22*30mm, 28*35mm, 34*45mm, 40*50mm (diameter*length)
·Stable performance: Ice is crystal clear and hard,well-shaped and beautiful,can be stored for a long time.
· Components brand: Compressor is German Bitzer or Refcomp, electric devices are Siemens or Schneider.
·Automatic operation: PLC intelligent controlled, full automatic production, need no human operation. And the touch screen controls the whole system, it is easy to use.

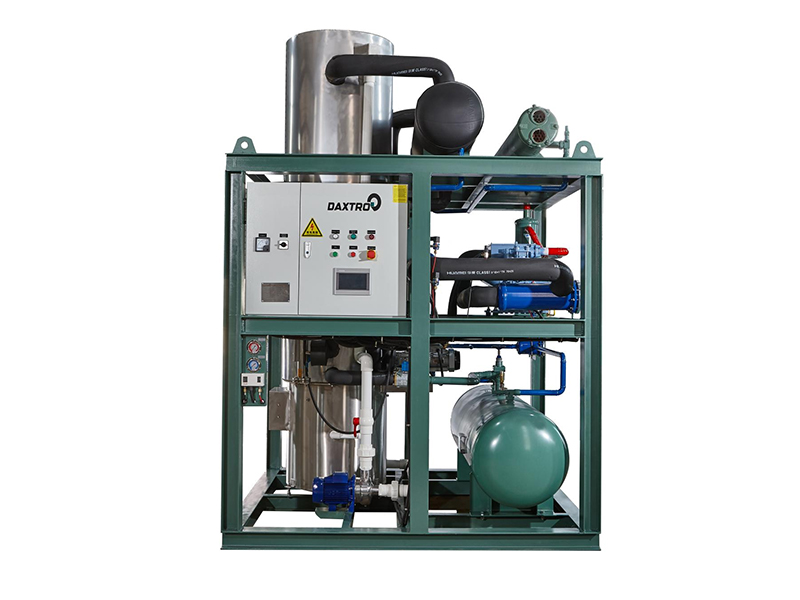

1 Ton Tube Ice Machine

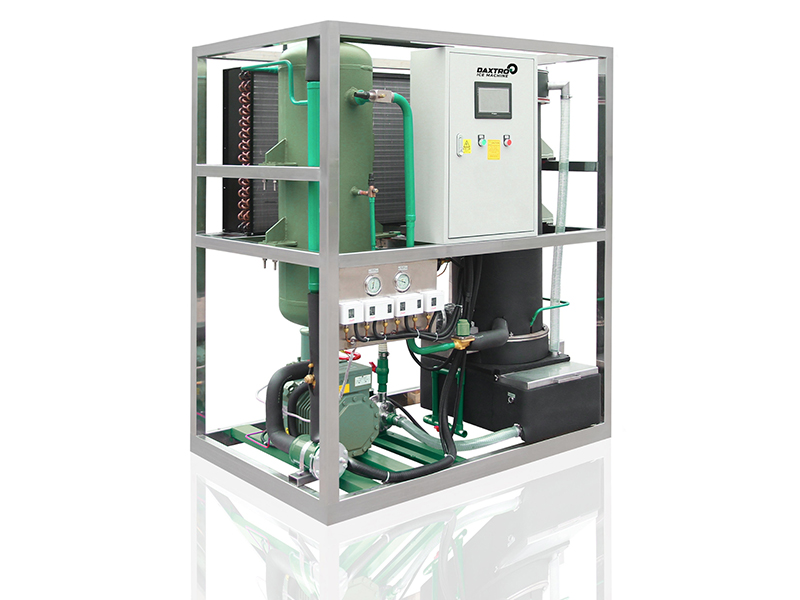

2 Ton Tube Ice Machine

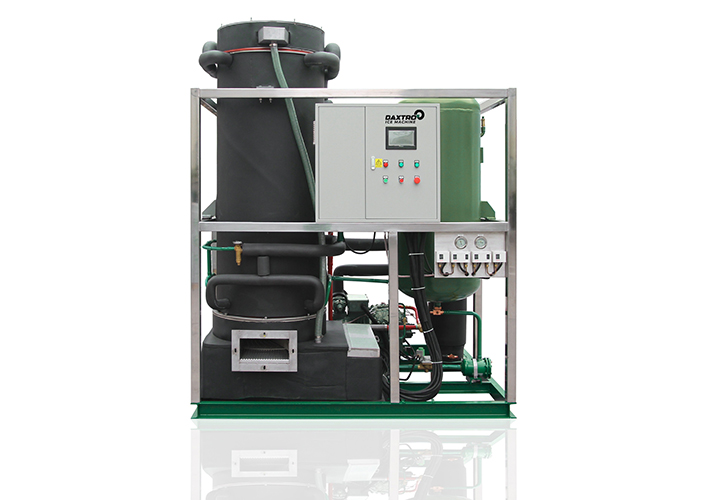

5 Ton Tube Ice Machine

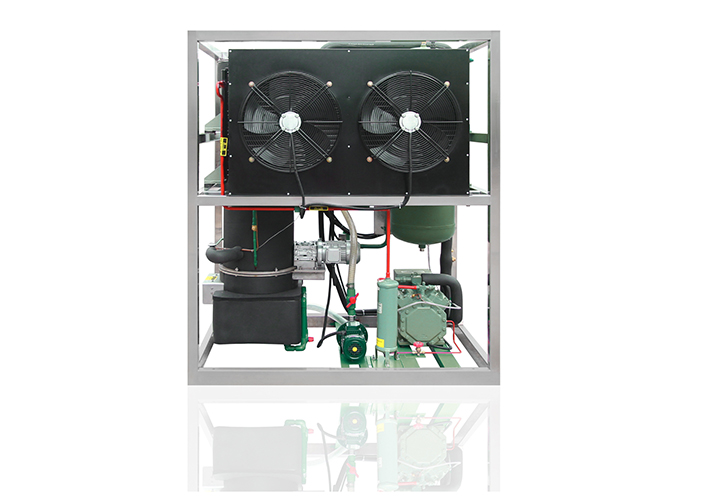

5 Ton Tube Ice Machine
